AG NEOVO TX-1502 | 4:3 with Metal Casing | 15"" | 1024x768 | 350Nits | Capacitive Touch | IP65

Artikelnr:

TX-1502

EAN:

4710739597257

Skärmstorlek 15"
Upplösning 1024 x 768
HD XGA
USB-C 0
DVI 0
DP 1
HDMI 1
Pekskärm Ja
Högtalare Nej
Skärmform Platt
Höjd justering Nej
Vridbar Nej
Pivot Nej
Användningsområde Personal display

TX-1502

AG Neovo TX-Series touch screen monitors, available in sizes 15” to 22”, provide a smooth and responsive touch experience with 10-point PCAP touch screens, including responsiveness to latex gloves. With DisplayPort, HDMI and VGA input connectivity, the TX-Series support analogue and digital signals respectively, making them flexible for various applications such as factory automation, information displays, digital signage, and self-service kiosks. These touch screen monitors are complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.

Premium PCAP Multi Touch Screen
Based on projected capacitive (PCAP) touch screen technology, AG Neovo touch screen monitors can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch response. These seamless touch senses are identical to those used in smartphones and tablets.

Cross-Platform Touch Capability
Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.

IP65 Dust and Water Protection
The TX-Series front IP65 touch screen monitors are designed to protect against dust and liquid spills. This makes these durable touch monitors ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.

Consistent Form Factor Design
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.

Durable and Scratch Resistant Touch Screen
For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.

Ergonomic Monitors with Flexible Mounting
TX-Series touch monitors offer flexible mounting options, from the ergonomic monitor stands that come with the monitors to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. These ergonomic monitors feature adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.

Versatile Connectivity
The TX-Series provides new and legacy systems the best of both worlds since it has both analog (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.

Specifications:

Panel	Panel Type:	LED-Backlit TFT LCD (TN Technology)
	Panel Size:	15.0"
	Max. Resolution:	XGA 1024 x 768
	Pixel Pitch:	0.297 mm
	Brightness:	350 cd/m²
	Contrast Ratio:	800:1
	Viewing Angle (H/V):	160°/150°
	Display Colour:	16.7M
	Response Time:	5 ms
	Surface Treatment:	Anti-Glare Treatment (Haze 25%),3H Hard Coating
Frequency	Frequency (H):	31 kHz-61 kHz
	Frequency (V):	55 Hz-75 Hz

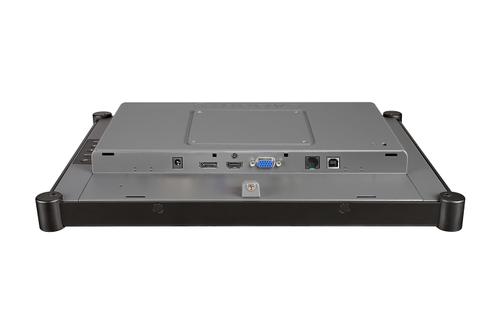

Signal Input	DisplayPort:	x 1
	HDMI:	1.4 X 1
	VGA:	15-Pin D-Sub x 1
External Control	RJ11:	Yes
Touch Screen	Technology:	Projective Capacitive
	Positional Accuracy:	± 2.0 mm
	Panel Interface:	USB (Type-B)
	Multi-touch Plug & Play:	10-point touch Windows® 7、8、10
	Single Touch Support by Driver:	Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
	Multi-touch Support by Driver:	10-point touch for Linux、Android 2.3-4.x
Power	Power Requirements:	DC 12V, 2.5A
	On Mode:	8W (On)
	Standby Mode:	< 0.6W
	Off Mode:	< 0.3W
Glass	Thickness:	3.1 mm (0.12")
	Transmission Rate:	> 90%
	Hardness:	> 7H
Operating Conditions	Temperature:	0°C-40°C (32°F-104°F)
	Humidity:	20%-80% (non-condensing)
Mounting	VESA FPMPMI:	Yes (100 x 100 mm)

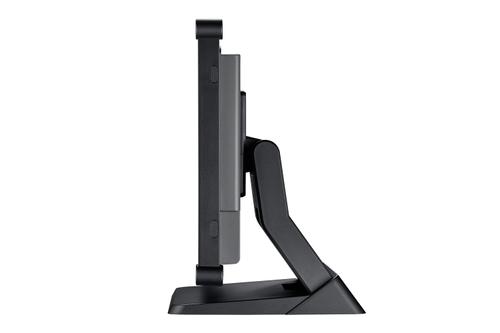

Stand	Tilt:	-5° to 90°
Security	Kensington Security Slot:	Yes
Dimensions	Product with Base (W x H x D):	348.4 x 312.7 x 214.2 mm (13.7" x 12.3" x 8.4")
	Product w/o Base (W x H x D):	348.4 x 276.4 x 46.6 mm (13.7" x 10.9" x 1.9")
	Packaging (W x H x D):	415.0 x 370.0 x 290.0 mm (16.3" x 14.6" x 11.4")
Weight	Product w/o Base:	2.7 kg (5.9 lb)
	Product with Base:	4.6 kg (10.1 lb)
	Packaging:	7.0 kg (15.4 lb)
Regulation Approval	Certifications & Compliance:	CE, LVD, WEEE, RoHS, REACH,EAC
Accessories	Supplied:	Power Adaptor, Power Cord, VGA Cable, HDMI Cable, USB Cable, Warranty Card
Optional Accessories	Wall Mount (Landscape only):	WMK-01, WMK-03, PMK-01
Power	Power Supply:	External
Storage Conditions	Temperature:	-20°C-60°C (-4°F-140°F)
	Humidity:	10%-90% (non-condensing)

Display

Skärm diagonal

38,1 cm (15")

Upplösning

1024 x 768 pixlar

Native bildförhållande

4:3

Skärmtyp

LED

Pekskärm

HD-typ

XGA

Paneltyp

Typ av bakgrundsbelysning

LED

Pekskärmstyp

Bordsskiva

Pekskärmsteknik

Projekterat kapacitivt system

Touch-teknik

Flerpunktsberöring

Antalet samtidiga beröringspunkter

Ljusstyrka (normal)

350 cd/m²

Svarstid (medel)

5 ms

Anti-glare skärm

Skärmform

Platt

Kontrastförhållande (medel)

800:1

Betraktningsvinkel (horisontell)

160°

Synfältsvinkel (vertikal)

150°

Antal färger

16,78 miljoner färger

Bildpunktavstånd

0,297 x 0,297 mm

Horisontellt sökområde

31 - 61 kHz

Vertikalt sökområde

55 - 75 hz

Diagonal skärmstorlek

38,1 cm

Dimfaktor

25%

Ytans hårdhet

Färgområdesstandard

NTSC

NTSC-täckning (typisk)

60%

Prestanda

NVIDIA G-SYNC

Nej

AMD FreeSync

Nej

Drifttid (timmar/dagar)

24/7

Installerat operativsystem

Windows 10

Windows-operativsystem som stöds

Windows 10, Windows 7, Windows 8

Mac-operativsystem som stöds

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave

Linux operativsystem som stöds

Multimedia

Inbyggda högtalare

Nej

Inbyggd kamera

Nej

Inbyggd mikrofon

Nej

Design

Positionering på marknaden

Business

Produktens färg

Grå

Material, hölje

Metall

Löstagbart stativ

Glastjocklek

3,1 mm

Anslutningar

Inbyggd USB-hubb

Nej

USB Touch port

Antal USB Touch-portar

Kvalitet på VGA (D-Sub) porten

HDMI

Antal HDMI-portar

HDMI-version

1.4

Antal Displayportar

Ergonomi

VESA-fäste

Gränsssnitt för panelmontering

100 x 100 mm

Monteringsbar på väggen

Produktvikt (oz)

Typ av kabellåsanslutning

Kensington

Höjdjustering

Nej

Lutningsjustering

Lutningsvinkel

-5 - 90°

Plug & Play-kompatibel

LED-indikatorer

Strömtillförsel

Strömförbrukning (vanlig)

8 W

Strömförbrukning i vänteläge

0,6 W

Strömförbrukning i avslaget läge

0,3 W

AC-adapter, nätspänning

12 V

Nätaggregatstyp

Extern

EPREL-kod (Europeisk databas för energimärkta produkter)

456259

Miljökrav

Temperatur vid drift

0 - 40 ° C

Temperaturintervall (förvaring)

-20 - 60 ° C

Intervall för relativ operativ luftfuktighet

20 - 80%

Fuktighet (förvaring)

10 - 90%

Vikt & dimension

Bredd (med stativ)

348,4 mm

Djup (med stativ)

214,2 mm

Höjd (med stativ)

312,7 mm

Vikt (med stativ)

4,6 kg

Bredd (utan stativ)

348,4 mm

Djup (utan stativ)

46,6 mm

Höjd (utan stativ)

276,4 mm

Vikt (utan stativ)

2,7 kg

Förpackning

Förpackningens bredd

415 mm

Låddjup

290 mm

Förpackningens höjd

370 mm

Vikt inkl. förpackning

7 kg

Förpackningens innehåll

Stå ingår

Kabel inkluderad

AC, HDMI, USB, VGA

Hållbarhet

Uppfyller hållbarhetskrav

Övrigt

Internationellt skydd (IP) kod

IP65

Mobila operativsystem som stöds

Android

Certifikat för överensstämmelse

CE, REACH, RoHS, WEEE

Certifiering

CE, LVD, WEEE, RoHS, REACH,EAC

Logistikdata

Harmonized System (HS)-kod

85285210
